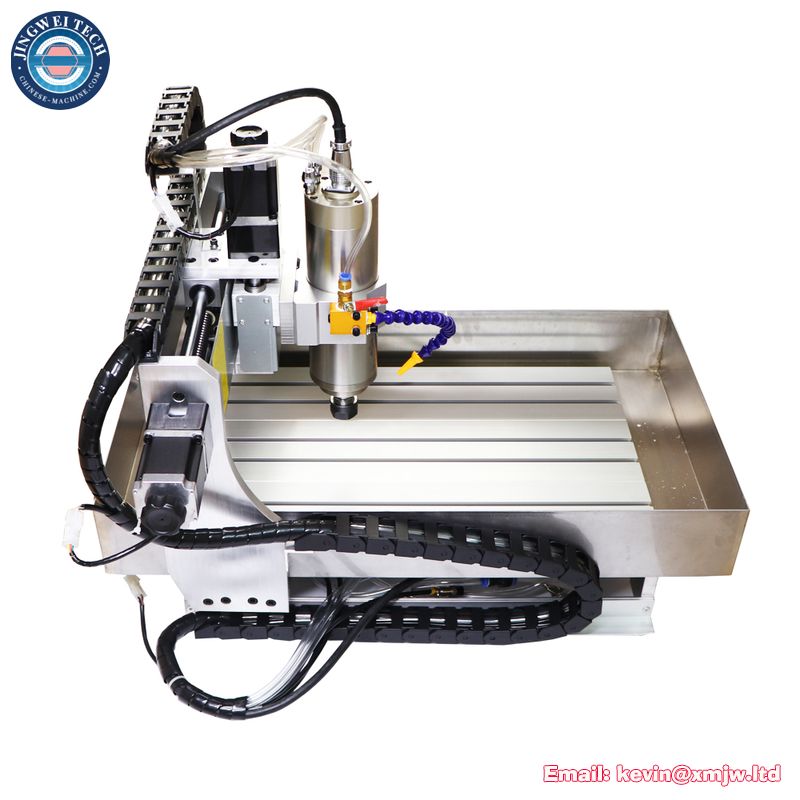

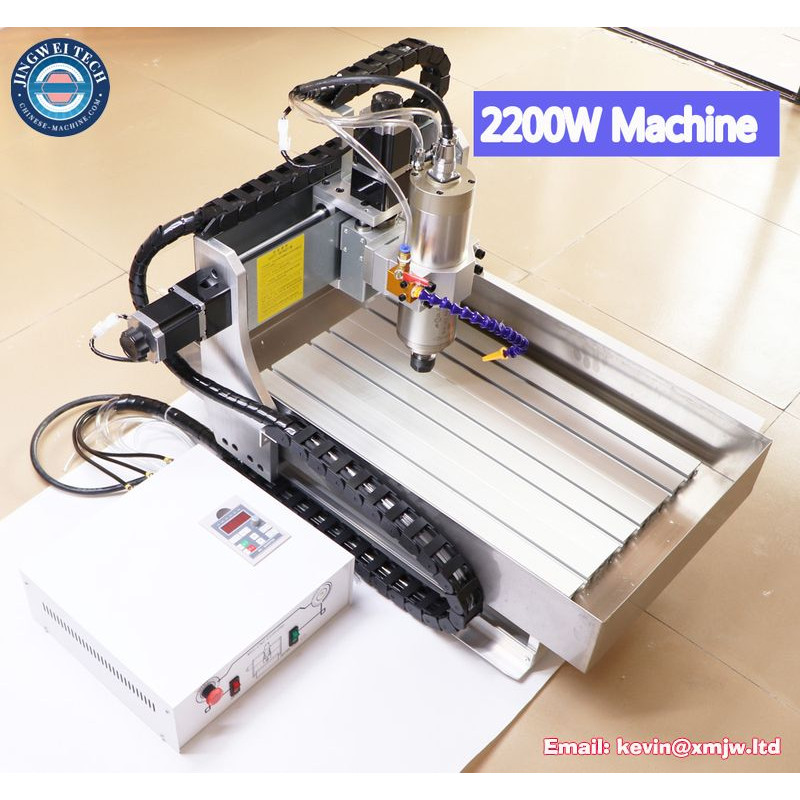

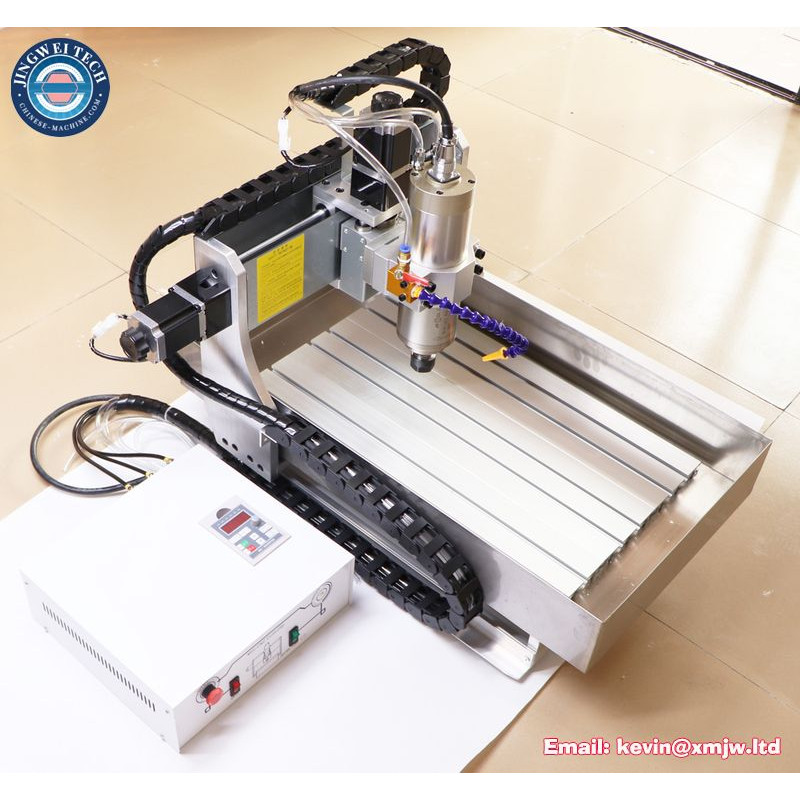

CNC Router 6040 4Axis Lpt USB Port 2200W 1500W 800W Wood Metal Engraver Milling Cutting Drilling Machine with Water Tank
- Brand: unbranded
- Product Code: CN230811956931
- Availability: 360000
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designedfor large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
6040 with water tank | |||||
Attribute | LPT+USB port 3axis | LPT+usb port 4axis | |||
Axis | 3axis | 4axis | |||
Interface | LPT port+usb port | LPT port+usb port | |||
water tank | YES | YES | |||
Toolauto-checking | YES | YES | |||
Spindle Motor: | 2200w/1500W/800W | 2200w/1500W/800W | |||
Type of screw | 1605 Ball screw | 1605 Ball screw | |||
Weigh: | 63KG | 67KG | |||
Machine Dimensions: | 860X690X550mm | ||||
Rack material: | 6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.) | ||||
Engraving area: | 600X400mm | ||||
Z-Axis Stroke: | 80mm, Engraving depth depends on the length of the tool edge | ||||
Acceptable material thickness: | ≤150mm | ||||
Rail type: | Chromeplate shaft+Linear Bearings,Surface hardening 61HRC | ||||
Spindle motor: | 2.2KW/1.5KW/800W VFD water cooling spindle | ||||
Collet type: | 2200W - ER16, 1500W/800W - ER11 | ||||
Stepper motor and drive: | two-phase hybrid stepping motor3A/PHASE,150N.cm, 8 segments drive. | ||||
Maximum operating speed: | 4000mm/min (Engraving speed : 300-3000mm/min) | ||||
Repeat positioning Accuracy: | ≤0.03mm | ||||
Software Compatability: | Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam) | ||||
Command code: | G code/.nc/.ncc/.tab/.txt | ||||

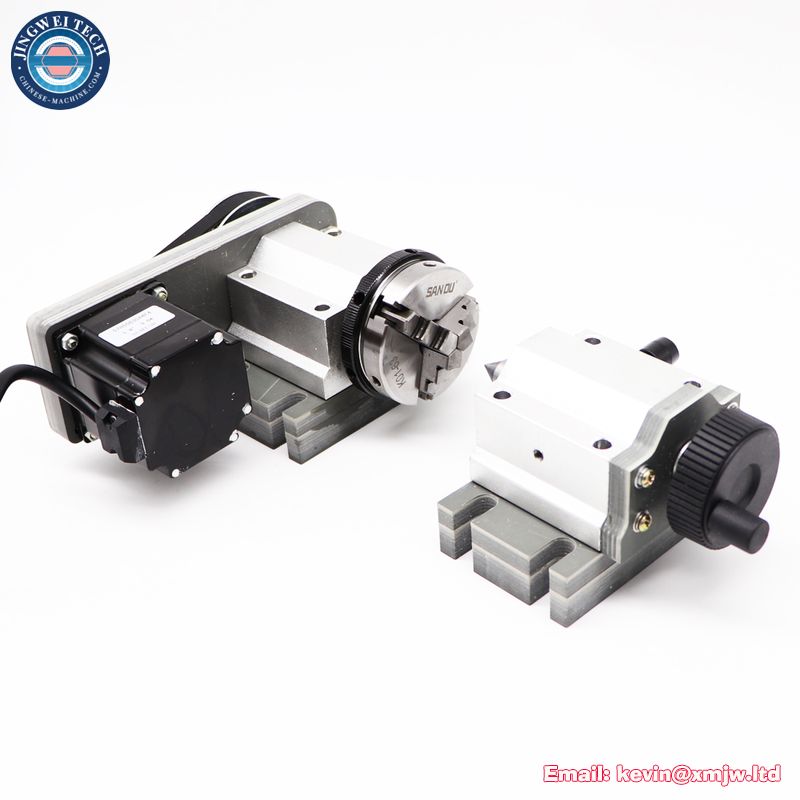

Rotation Axis (4th Axis) Description: | Chuck Size: 50mm self-centering chuck Center height: H = 51mm Clamping diameter: 50mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 4:1 Stepper motor:NEW 57 type / 3A Stepper Drive: T65-axis drive Positioning accuracy: 0.075 ° Weight: 4kg | ||||
Sink Height is about 10CM

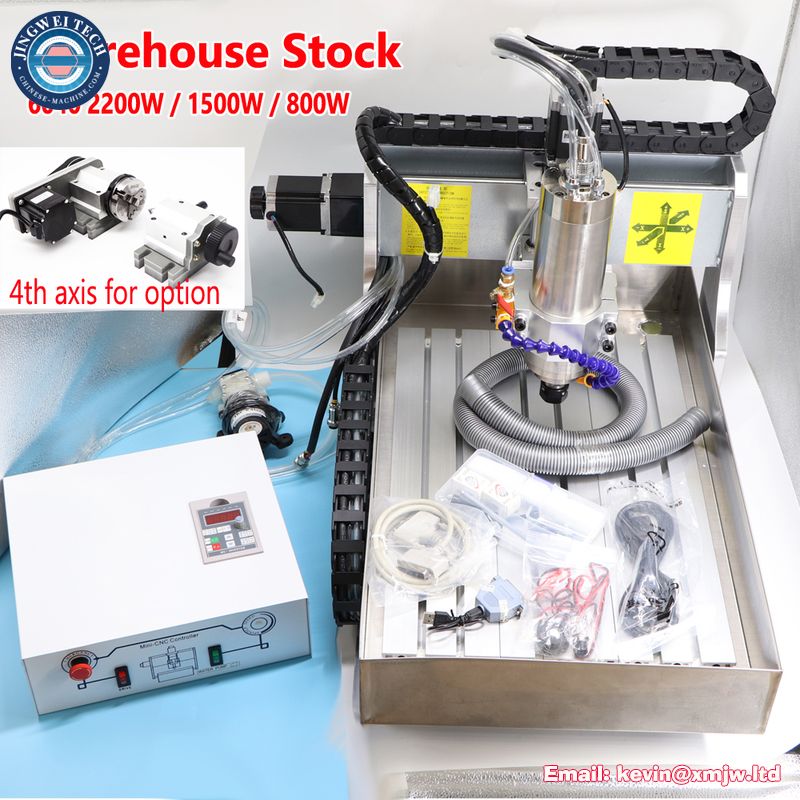

4TH AXIS FOR OPTION
| 4 axis | for option |
| Certification | CE |
| CNC or Not | CNC |
| Condition | New |
| Is Smart Device | no |
| Model | CNC Router 6040 with Sink |
| Model Number | CNC Router 6040 with Sink |
| Origin | Mainland China |
| Repeat positioning Accuracy | less than 0.01mm |
| Spindle | water cooled spindle |
| Type of screw | 1605 Ball screw |
