3040 CNC Frame Kit Ball Screw Aluminum Table Alloy Engraving Machine Part for Diy CNC Router Milling Engraver 3040Z
The CNC router frame need self-assembled for DIY amateur;
The cnc router is designed for large areaengraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Model and Technical Parameters
MODEL | CNC 3040 Frame | |||
Attribute | Z | Z+H | ||

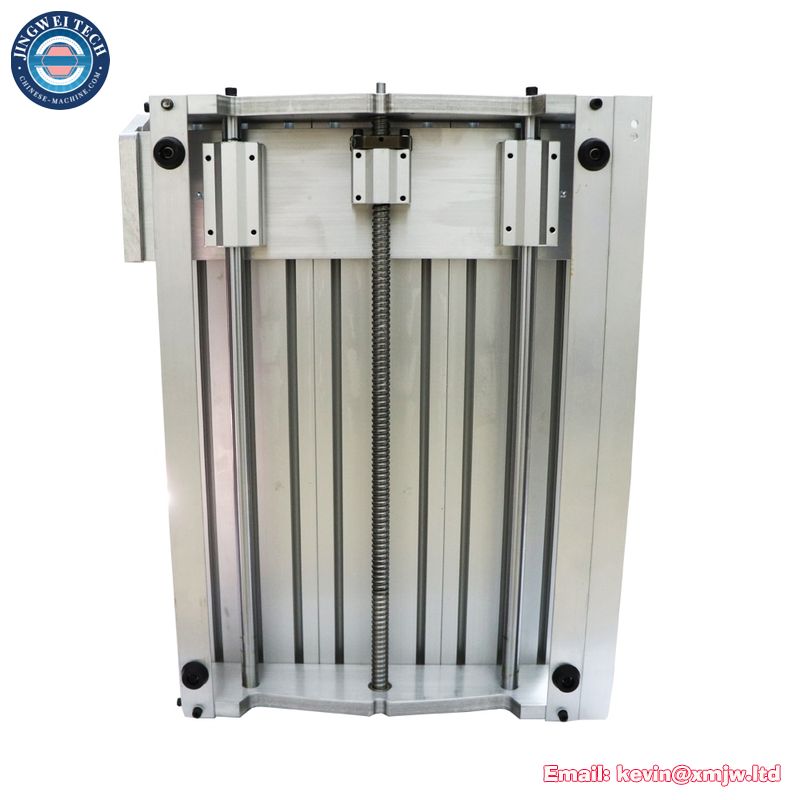

Type of screw | 1605 Ball screw | 1605 Ball screw | ||
Machine Dimensions | 660X570X450mm | |||
Rack material | 6061 and 6063 Hard aluminum alloy | |||
Engraving area | 400X300mm | |||

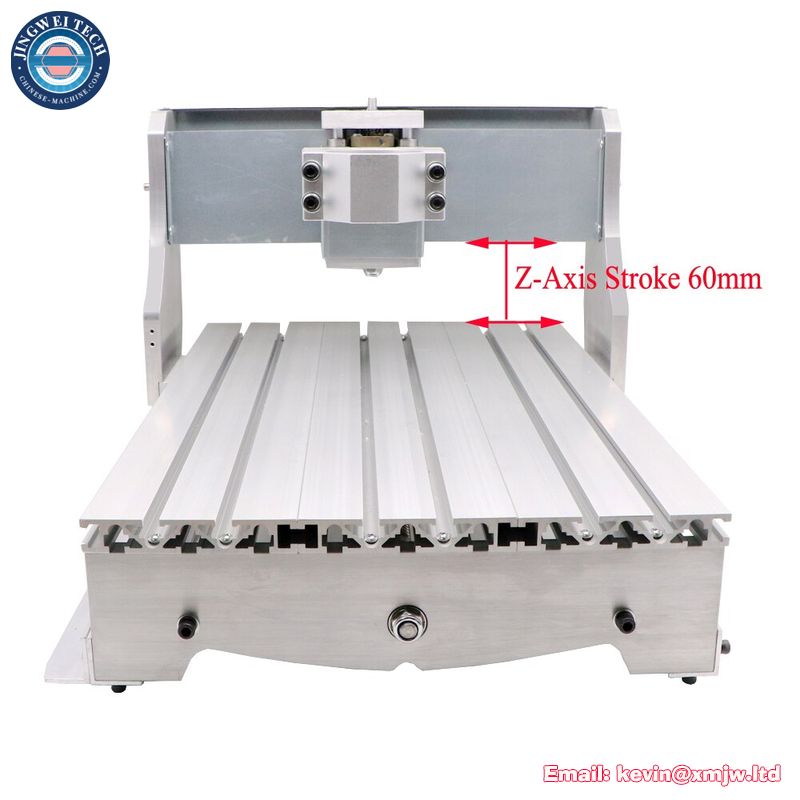

Z-Axis Stroke | 60mm, Engraving depth depends on the length of | 120mm, Engraving depth depends on the length of the tool edge | ||
Acceptable material thickness | ≤60mm | ≤120mm | ||
Rail type | Chromeplate shaft + Linear Bearings, Surface | |||
Diameter of | 65mm( 52mm optional) | |||
Stepper motor size | 57mm | |||
Repeat positioning Accuracy | ≤0.03mm | |||
| Certification | CE |
| CNC or Not | CNC |
| Condition | New |
| Is Smart Device | no |
| Model | CNC Router Frame 3040 |
| Model Number | CNC Router Frame 3040 |
| Origin | Mainland China |
