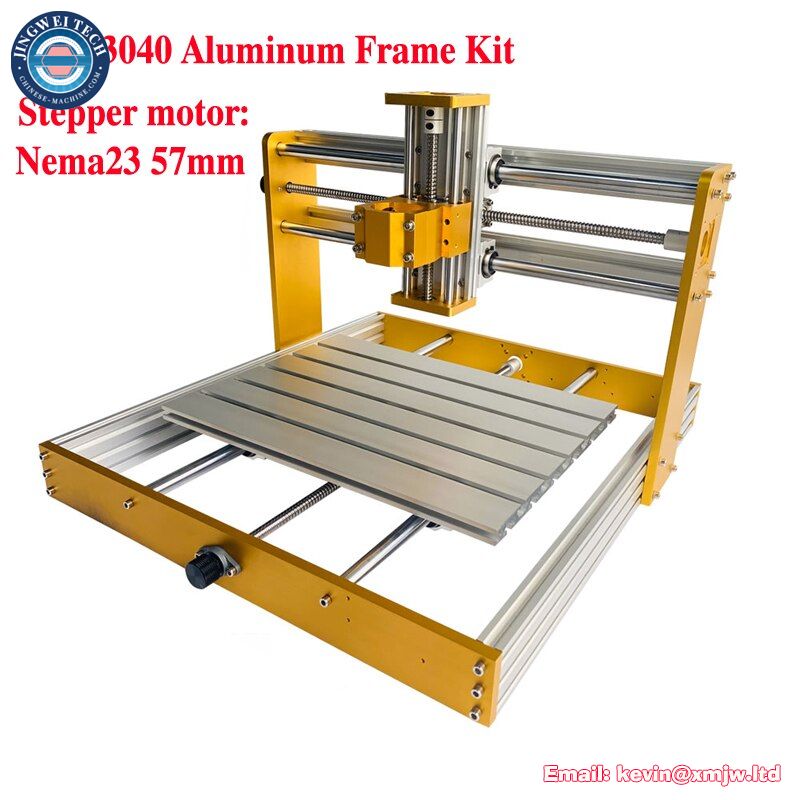

CNC Router 3040 Aluminum Frame Kit Nema23 57mm Stepper Motor Spindle Holder 300*400*120mm Stroke CNC 3018 Plus for Diy Engraver
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230811154433
- Availability: 1800
CNC Router 3040 Aluminum Frame Kit Nema23 57mm Stepper Motor Spindle Holder 300*400*120mm Stroke CNC 3018 Plus for Diy Engraver
Tips:
The machine is all accessories, you need to assemble it by yourself after you receive it.
Feature
Longer 120mm stoke for Zaxis module, XYZ three-axis actual stroke 300*400*120mm, Aluminum Table Size 300*400mm

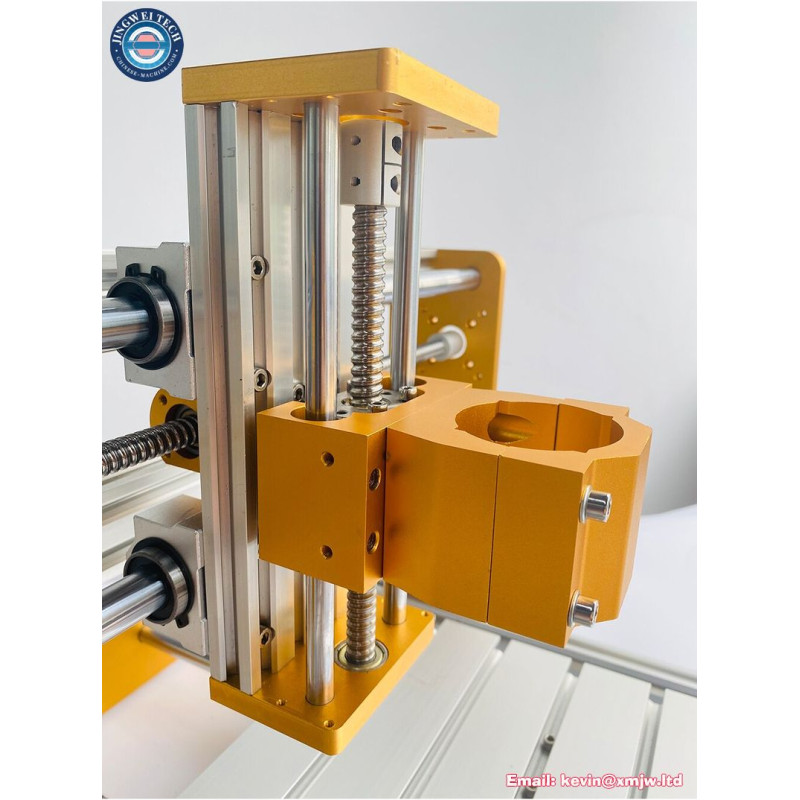

Z-axis adopts customized holes, no screws are required for installation
12mm optical axis, stable and durable

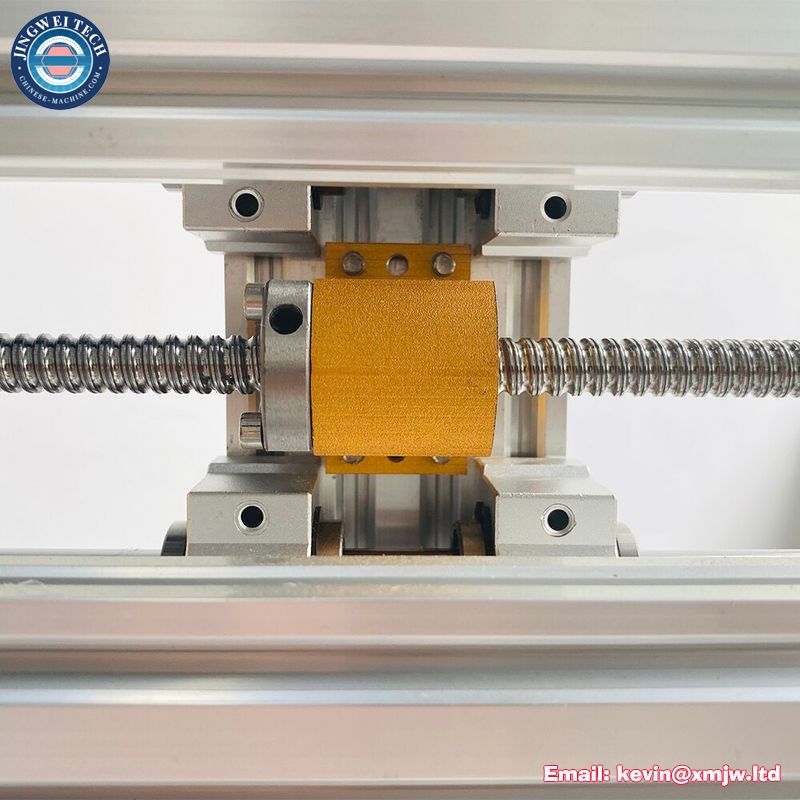

Ball screw 1204, more precise, higher work efficiency, lead 8MM, POM anti-backlash nut
Screws are equipped with gaskets to protect the machine more,Both screws are equipped with knobs, size 8mm
Spindle hole diameter: 52mm, Laser and spindle switch freely, installation is simple and convenient
Specification
Working area: 300*400mm
Z axis stoke: 120mm ；after install limit switch is 100mm
Screw : ball-screw 1204
Optical axis：Diameter 16mm
Aluminum profile： 2060
Material: Aluminium, Full metal oxidation sandblasting
Stepper motor: Support Nema23 57mm
Horizontal screw seat, inner diameter 8
PS: Equipped with baffle and emergency stop switch hole
| Aluminum profile: | 2060 |
| Certification | CE |
| CNC or Not | CNC |
| Condition | New |
| Is Smart Device | no |
| Model | CNC Router 3040 Aluminum Frame Kit |
| Model Number | CNC Router 3040 Aluminum Frame Kit |
| Origin | Mainland China |
| Spindle hole diameter | 52mm |
| Stepper motor: | Nema23 57mm (Optional) |
| Working area | 300*400mm |
| Z axis stoke | 120mm: after install limit switch it is 100mm |
