DuPont 2.54 and DuPont 2.0 Male and Female Terminal Crimp Machine 2T Wire Plug Crimping Tool
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230809368321
- Availability: 867

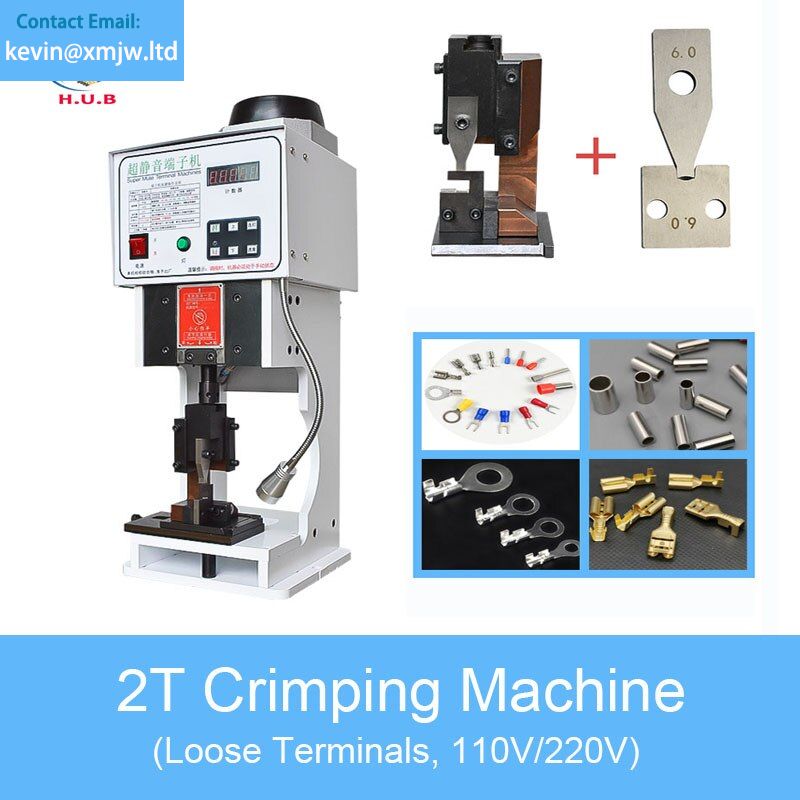

DuPont 2.54 and DuPont 2.0 Male and Female 2tTerminal Crimp Machine
This series semi-automatic terminal crimping machines are suitable for various terminals, very easy to change the applicator.
Suitable for crimping computer terminals, DC terminal, AC terminal, single grain terminal, joint terminal etc.
Features:
1. Built-in frequency converter, high production rate and low noise
2. Crimping dies designed according to your terminal
3. Production rate is adjustable
4. Support manual mode and automatic mode, easy to change
5. LED display shows crimped terminals quantity
6. High preision molds and die, easy to change.
Different sizes of wires and terminal thicknesses require crimping machines with different crimping force.
Product Description
Model TE-2T
Power supply 200V240V 50/60Hz
Air Source 0.4-0.6mpa
Stroke 30mm
Body size 340*350*700 MM
Motor power 0.75KW/H
Weight 80KG
Average power consumption 0.45KW/H
| Blade Die | Customized According Terminal |
| Certification | CE |
| DIY Supplies | ELECTRICAL |
| HS Code | 8479819000 |
| is_customized | Yes |
| Model Number | TE-2T |

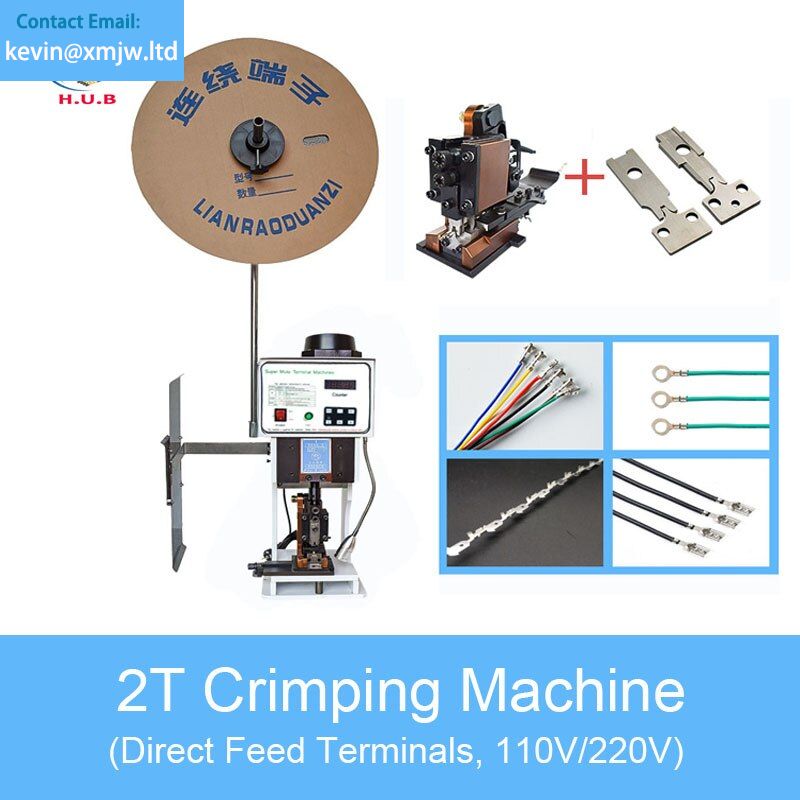

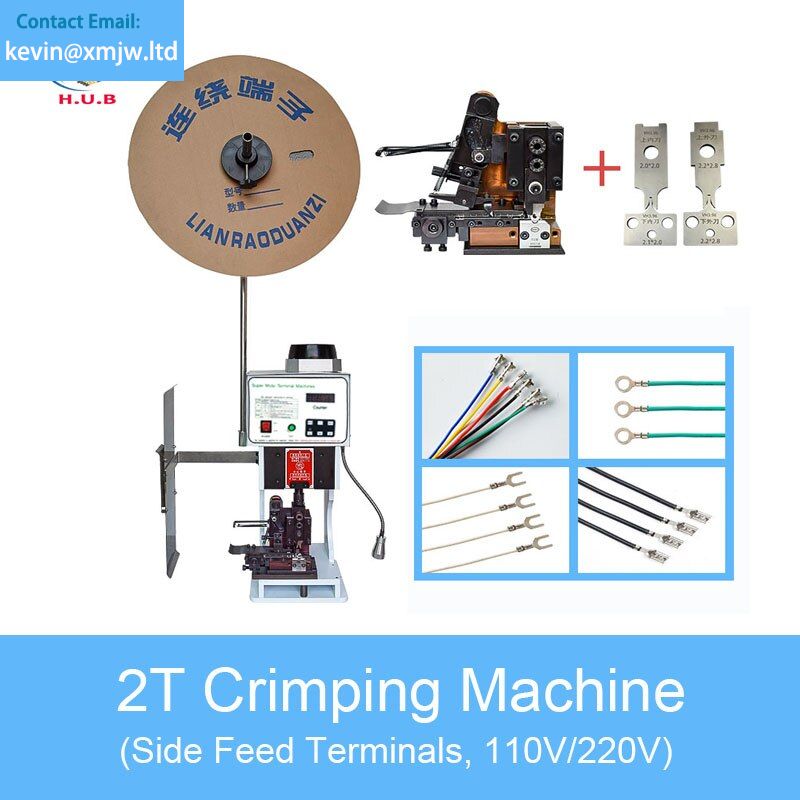

| Molds | Direct Feed;Side Feed |
| Mould Life | 300;000-1;000;000 Shots |
| Origin | Mainland China |
| Wire Plug Crimp Machine | Semi automatic |
