plastic product auto parts manufacturing equipment rotary sliding table vertical injection molding machine
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230813310258
- Availability: 500
Product Description
China Double Color/Two Color 45T Vertical Plastic Injection Moulding Machinery And Equipments
(Main Features)
Inadequate Clamp Tonnage
If clamp tonnage is too low then it will be difficult to produce quality parts. Low clamp tonnage means inconsistent weights,
flash, short shots, wall section variation, poor surface finish and size variation.
Machine and mold wear will be excessive.
We have 35T/45T/55T/85T/120T/160T/200T or more ,Can customized.
If you do not know how to choose the right tonnage injection molding machine , please contact me
Product Images

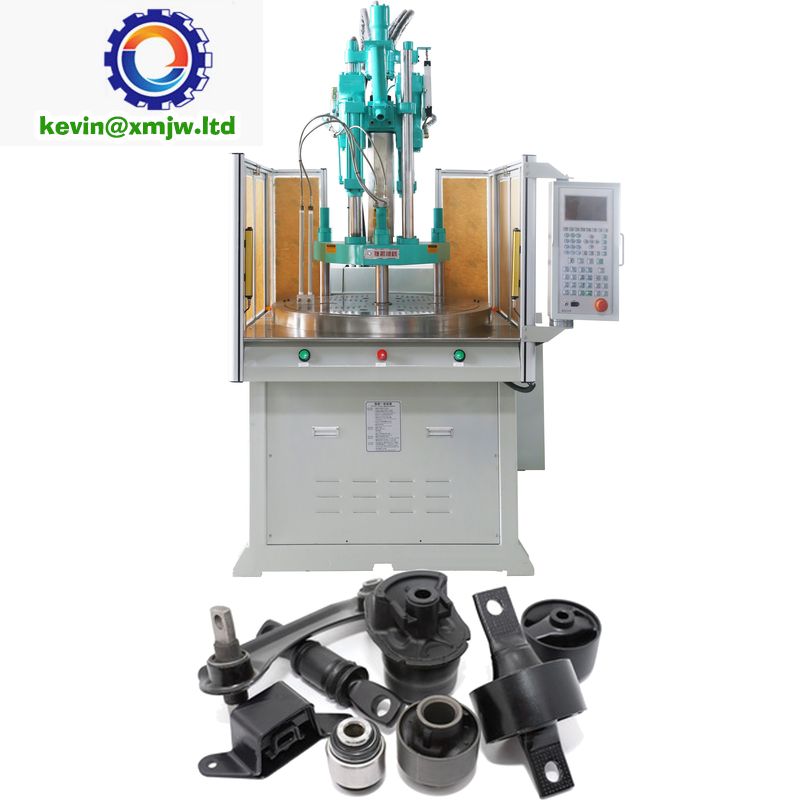

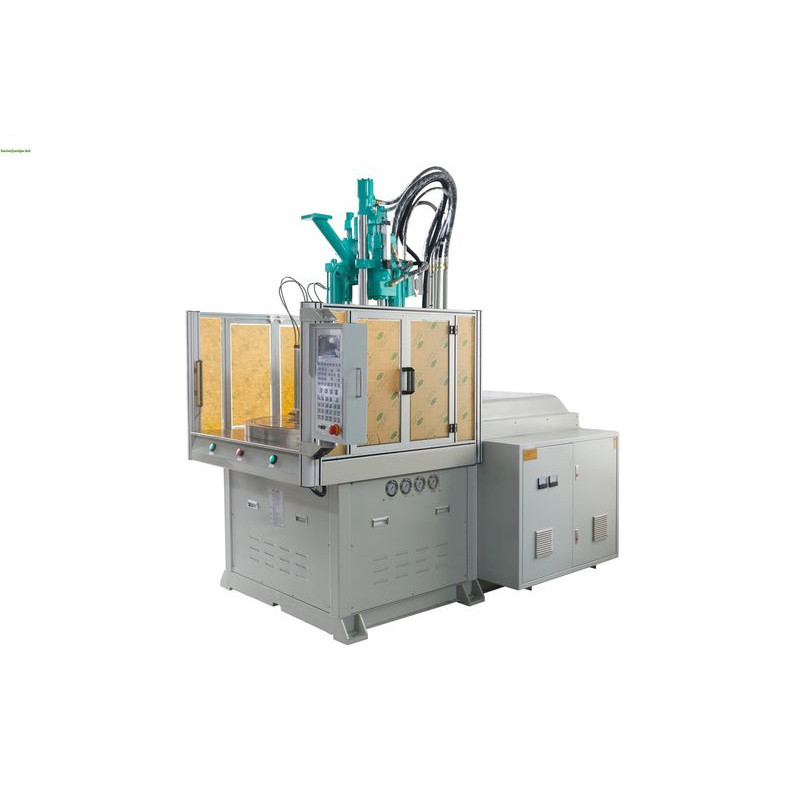

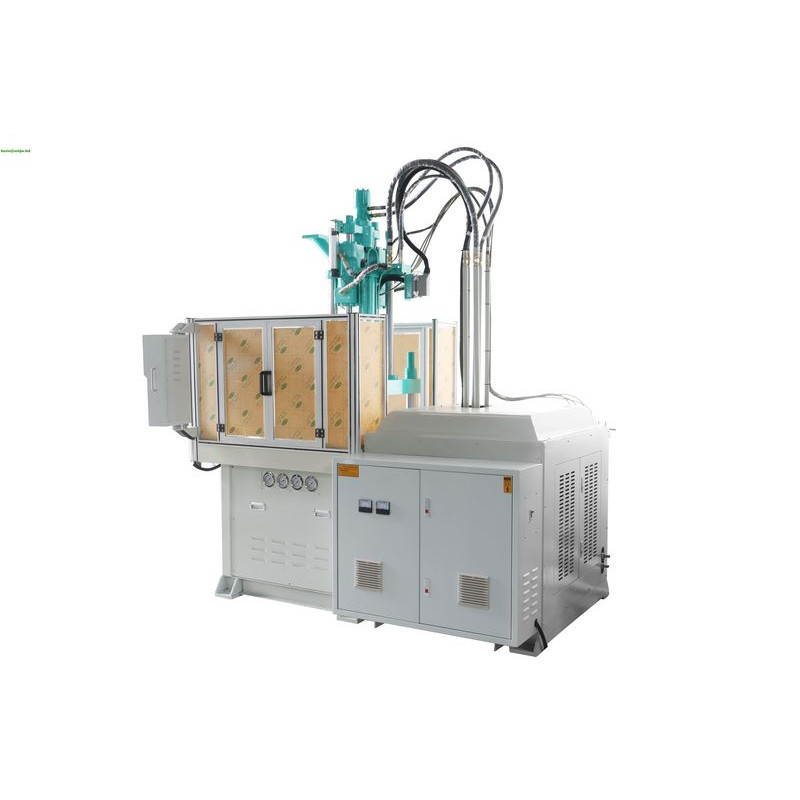

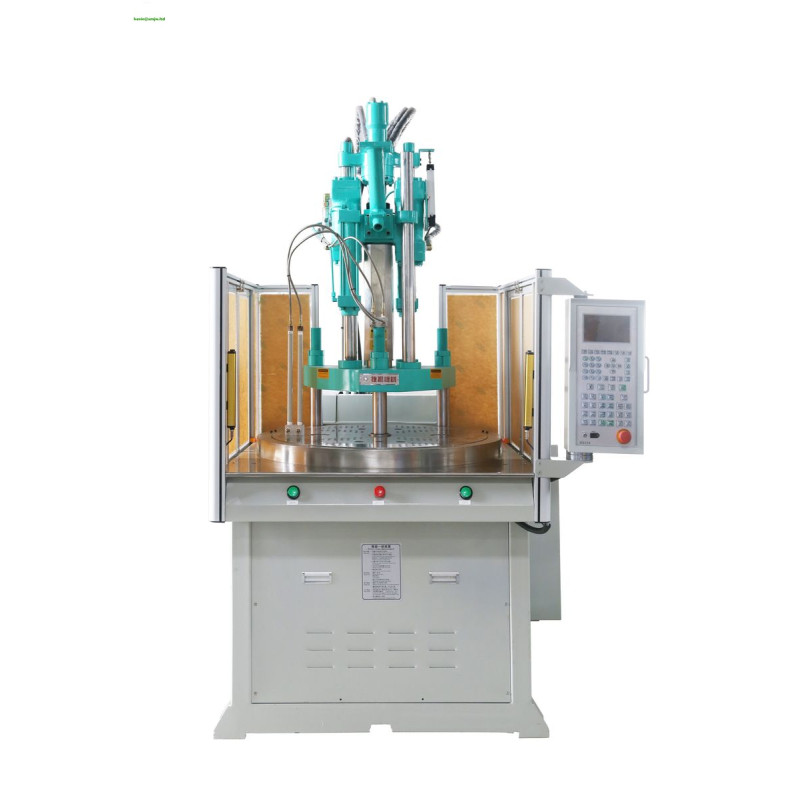

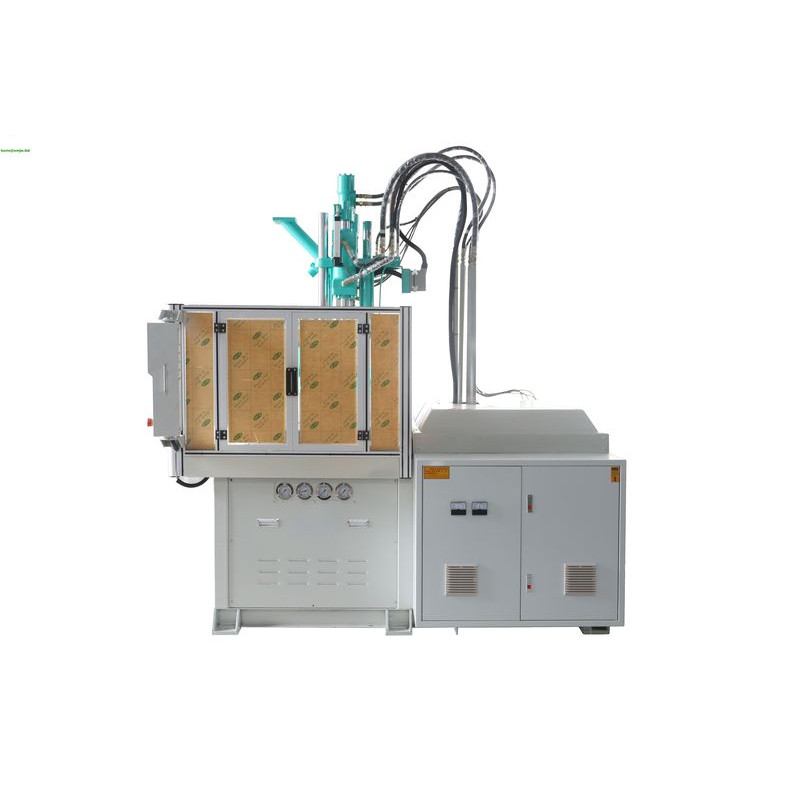

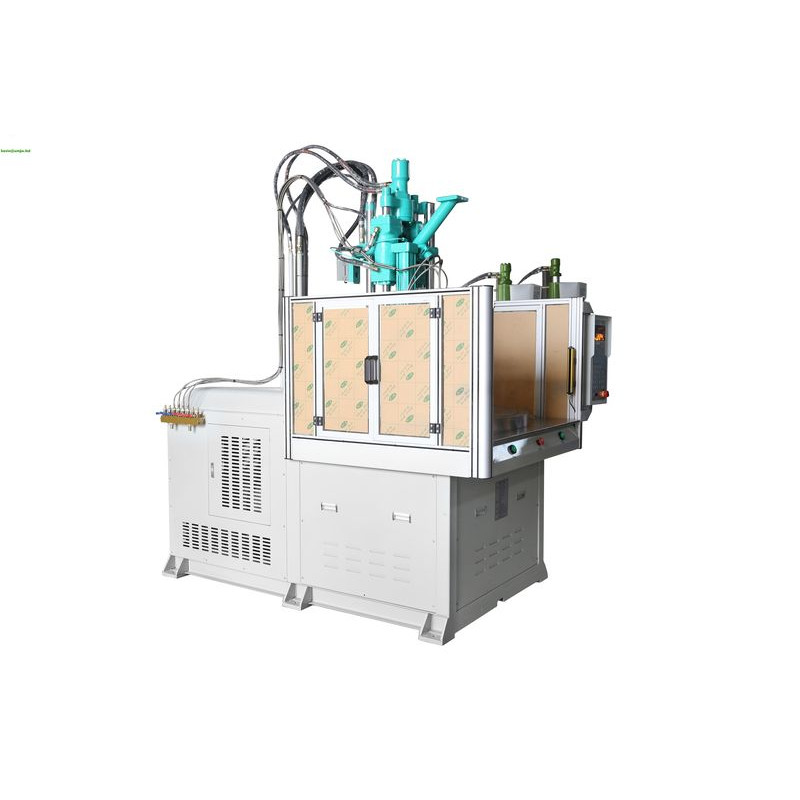

China Double Color/Two Color 45T Vertical Plastic Injection Moulding Machinery And Equipments
<div id="ali-anchor-AliMagic-eiba8p" class="magic-0" data-section="AliMagic-eiba8p" data-section-title="
| After Warranty Service | 1Year |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Applicable Industries | Building Material Shops;Manufacturing Plant;Construction works |
| Brand Name | JIE YANG |
| Condition | New |
| Core Components | Bearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw |
| Ejector Force(kN) | 26 kN |
| Ejector Stroke(mm) | 75 mm |
| Function | Plstic Injection Molding Machinery |
| Injection pressure | 2319/2000/1742 kg/cm2 |
| Injection Rate (g/s) | 63.5 g/s |
| Injection Weight (g) | 83 g |
| Key Selling Points | Automatic |
| Keyword | Vertical Plastic Injection Moulding Machine |
| Machine Type | Hydraulic;Plastic machinery |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2022 |
| Max. Open daylight | 320/420mm |
| Min. Mold Height | 120/220mm |
| Mold Height(mm) | 120 - 220 mm |
| Open Stroke(mm) | 200 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid;PF |
| Plastic Type | Thermoplastic |
| Power (kW) | 7.5 kW |
| Product name | Plastic Injection Moulding Machine |
| Screw diameter | 26/28/30mm |
| Screw diameter (mm) | 30 mm |
| Screw Speed (rpm) | 0 - 190 rpm |
| Showroom Location | Viet Nam |
| Style | VERTICAL |
| Theoretical Shot Volume(cm³) | 88 cm³ |
| Type | Injection Moulding Machine |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 2200 kg |
