Vertical Type Tpu Sole Injection Molding Machine Flip-flops with injection molding machine
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230813461454
- Availability: 2500
1.Straight screw ejected assembly.
2.Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3.Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4.Low-pressure closed die assembly can protect the safety of die.
5.Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6.Can be installed a single mold or double shuttle table.
7.English/Arabic/Spanish LCD and so on about ten language display, which can memorize 999 groups of mold data.

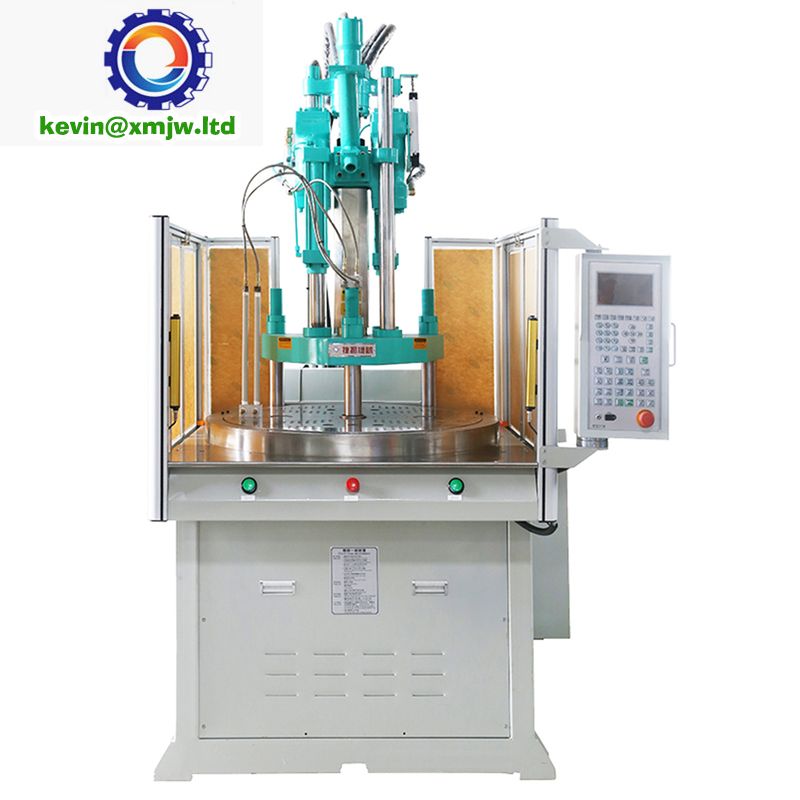

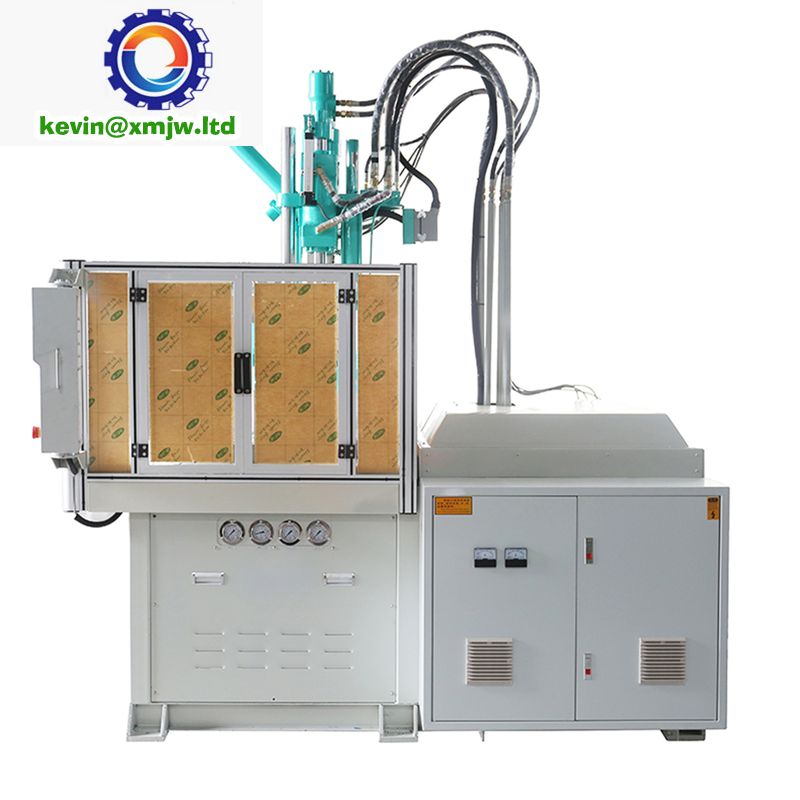

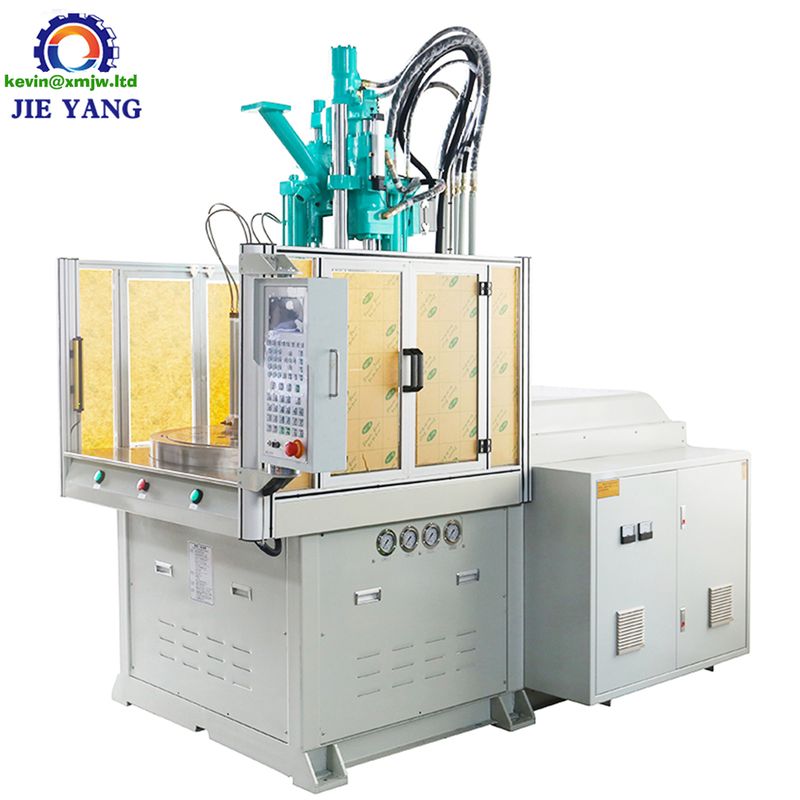

Auto Manufacturing PBT Plastic Vertical Rotary Table Injection Molding Machine For Making Led housing
Specification for rotary table injection molding machine:
| MODEL | UNIT | FJY-198 550R2 | |||
| Injection Unit | Screw Diameter | mm | 32 | 36 | 40 |
| Injection Pressure | kg/cm2 | 2050 | 1620 | 1312 | |
| Max.Shot Weight(PS) | g | 121.5 | 153.8 | 201 | |
| Injection Rate | mm | 108 | |||
| Clamping Unit | Clamping Force | Tons | 55 | ||
| Disk Station | pc | 2~3 | |||
| Max.Open Distance | mm | 380x480 | |||
| Min.Mold Height | mm | 180/280 | |||
| Opening Stroke | mm | 200 | |||
| Enjection Force | Tons | 2.7 | |||
| Enjection Stroke | mm | 100 | |||
| Power Unit | Max.Hydaulic Pressure | kg/cm2 | 140 | ||
| Pump Motor Power | KW/HP | 11/15HP | |||
| Total Weight | KW | 16.3 | |||
| Other | Machine Weight | Tons | 3.3 | ||
| Machine Dimensions(LxWxH) | m | 2.34x1.64x2.56 | |||
| Shipping Weight | Tons | 3.5 | |||
Here is Jieyang Brand machines company, we are a vertical plastic injection machine manufacturer.
This model we recommended has been a best seller for nearly few years.
We can provide machines to make above product and share you more details.
So you can quickly understand the performance of the machine, we will help you debug and lifetime maintenance services in advance, whenever you happen to me.
Our R&D team would help you to design a machine that meet your requiry.
Auto Manufacturing PBT Plastic Vertical Rotary Table Injection Molding Machine For Making Led housing
| After Warranty Service | Video technical support |
| Applicable Industries | Building Material Shops;Manufacturing Plant;Construction works;Other |
| Brand Name | JIE YANG |
| Condition | New |
| Core Components | Bearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw |
| Disk Diameter | 980mm |
| Disk Station | 2-3pcs |
| Ejector Force(kN) | 13.7 kN |
| Ejector Number | 1 |
| Ejector Stroke(mm) | 100 mm |
| Injection pressure | 1870~960kg/cm2 |
| Injection Rate (g/s) | 135.6 g/s |
| Injection Weight (g) | 201 g |
| Key Selling Points | Automatic |
| Machine Color | Customized |
| Machine Type | Hydraulic |
| Machinery Test Report | Provided |
| Min. Mold Thickness | 250/200mm |
| Mold Height(mm) | 180 - 280 mm |
| Open Stroke(mm) | 200 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | ABS;ABS/PP;EPS;EVA;EVOH;FRPP/PVC;HDPE;HDPE/PP;LDPE;PA;PC;PE;PE/PP;PET;Polylactic Acid;Polystyrene;PP;PPR;Bakelite PF |
| Plastic Type | Thermoplastic |
| Power (kW) | 11 kW |
| Product name | Injection Molding Machine Factory |
| Screw diameter | 32~40mm |
| Screw diameter (mm) | 40 mm |
| Screw Speed (rpm) | 1 - 200 rpm |
| Showroom Location | Viet Nam |
| Style | VERTICAL |
| Theoretical Shot Volume(cm³) | 226 cm³ |
| Total Weight | 12KW |
| Type | Tube Head Injection |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 3500 kg |
