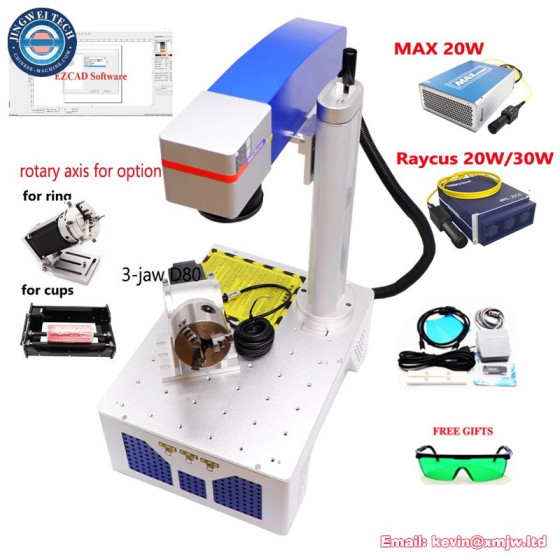

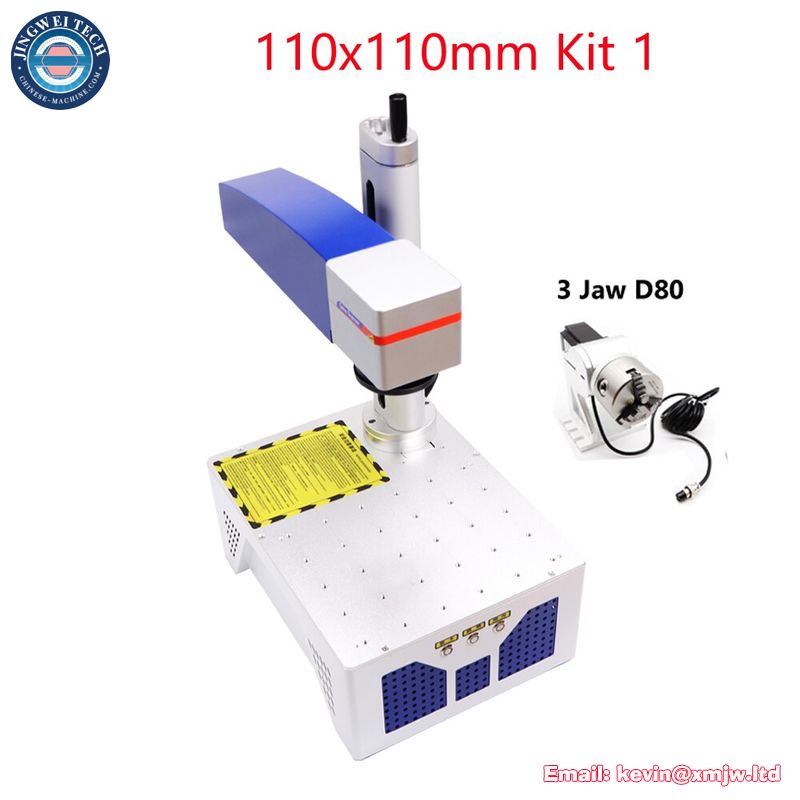

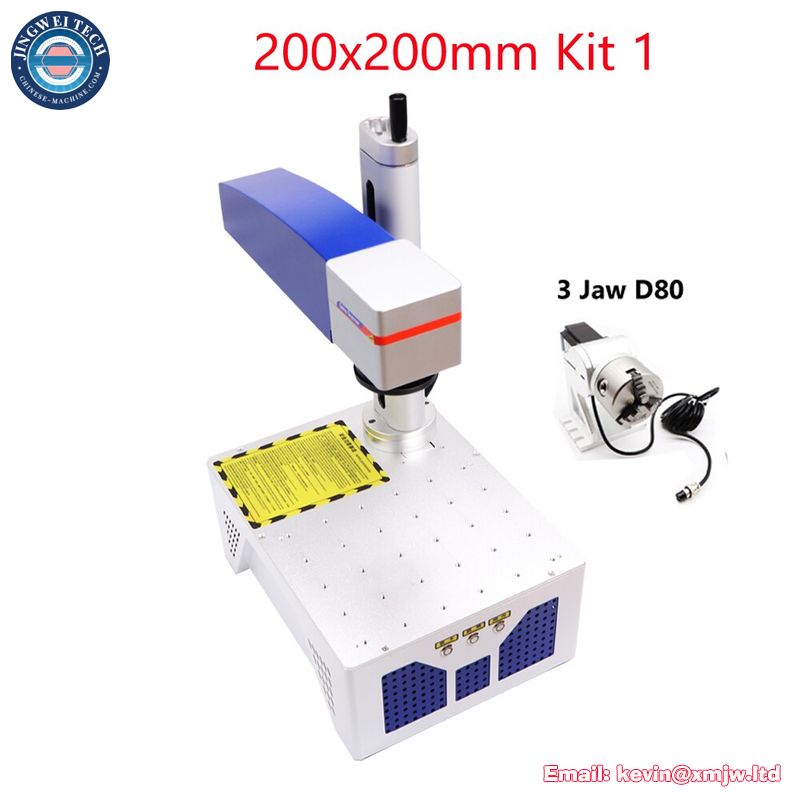

Raycus Fiber Laser Marking Machine 20W 30W Stainless Steel Ring Metal Cutting Silver Gold Jewelry Engraver with Rotary Axis
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230811511091
- Availability: 2400
Specification
Laser Brand | RAYCUS / MAX |
Laser power | Raycus 20W/30W / MAX 20W |
Working Area(suggestion) | 20W: 70x70mm, 110x110mm 30W: 70x70mm, 110x110mm, 150x150mm |
Cooling Mode | Air Cooling |
Laser Wavelength | 10.64 um |
Frequency of pulse | 20-100 KHz |
Marking Depth | 0.01 - 0.2mm |
Marking Speed | ≤4000 mm/s RC1001 |
Marking Lines | 1-10 lines |
Minimum Line Width | 0.017 mm |
Shaped text | 0.5mm letter |
Repeatability Accuracy | ±0.002 mm |
Resolution Ratio | 0.1 mm |
Marking Content | Text, pattern, date, bar code, etc |
Operation System | Microsoft Windows XP or Windows 2000 WIN 7 WIN8 WIN 10 |
Control Software | EZCAD ENGLISH Control Software |
Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
Unit Power | ≤500V |
Operation Temperature | 5°C-40°C |
Relative Moisture | ≤ 90%, no fog |
Dimensions(L*W*H) | 42 x 32 x 56 cm |
Power supply requirements | 220 V or 110V |
Weight | 20KG |
Warranty | 24 months |
| Brand Name | OEMG |
| Certification | CE;CE |
| Feature | The field mirror can rotate 360 degrees |
| Fiber Laser source | Raycus / MAX |
| Laser Power | 20W / 30W |
| Linear speed | max 8000mm/s |
| Machine size | 420x320x560cm |
| Min line width | 0.017mm |
| Model Name | Mini Fiber Laser Marking Machine |
| Model Number | Mini Fiber Laser Marking Machine |
| Origin | Mainland China |
