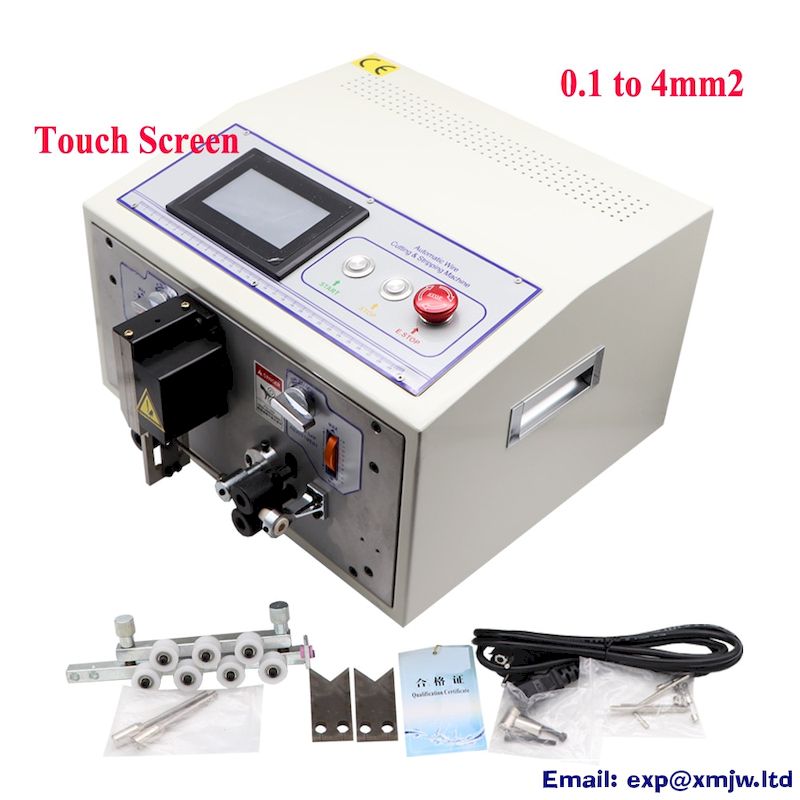

SWT-508SD/S Automatic Computer Wire Stripping Peeling Cutting Machine 0.1 to 4mm2 Wire Stripper Touch Screen Control 220V 110V

Price in reward points: 1262
  • Brand: unbranded
  • Product Code: CN230807521487
  • Availability: 180000
- +

SWT-508SD/S Automatic Computer Wire Stripping Peeling Cutting Machine 0.1 to 4mm2 Wire Stripper Touch Screen Control 220V 110V

1.1,Model: SWT508-SD-S -- Touch Screen

2,Power: AC 220V/110V 50/60 Hz

3, POWER:200W

4,Cutting length: 1-9999 mm

5,Cutting tolerance: (0.2+/- 0.002 by L) mm

6,Cut off the error: can be modified

7,Stripping length:Front end 0-35mm,Rear end 0-15 mm

8,Middle strip cut: 11 places strip

9,Cutting wire core section:0.1-4.5mm2

10,Max cut diameter: ¢6

11,Optimal stripped wire: PVC/teflon/silica gel line /. Glass fiber cables, etc

12,The blade material: hard tungsten steel (import BaiGang optional)

13,Peel linear velocity (a/hour) : L = 100 mm, 3000-8000 PCS/h (high yield)

14,Driving way: 4 wheels drive

15,Envelop dimensions: 537*507*410

16,weight:27KG

17,Showing the way: Chinese and English LCD interface

18, 12 months warranty

19, Noise level <70dB(A)




ApplicationComputer
CertificationCE;FCC;RoHS
Cutting length1-9999 mm
Cutting tolerance(0.2+/- 0.002 by L) mm
Cutting wire core section0.1-4.5MM2
Driving way:4 wheels drive
is_customizedYes
Middle strip cut11 places strip
ModelSWT508SD/S 0.1-4.5MM2 wire stripping machine
Model NumberSWT508SD/S 0.1-4.5MM2 wire stripping machine
Optimal stripped wirePVC/teflon/silica gel line /. Glass fiber cables;etc
OriginMainland China
Showing the wayChinese and English LCD interface
Stripping lengthFront end 0-35mm;Rear end 0-15 mm
TypeMale to Female
