AM-70 Pneumatic cable terminal crimping tool for automotive wire
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230808503302
- Availability: 500
AM-70 electric crimping tools for crimping non-insulated cable lugs terminals 4-70mm2 pneumatic crimping tool
Product Description
Feature

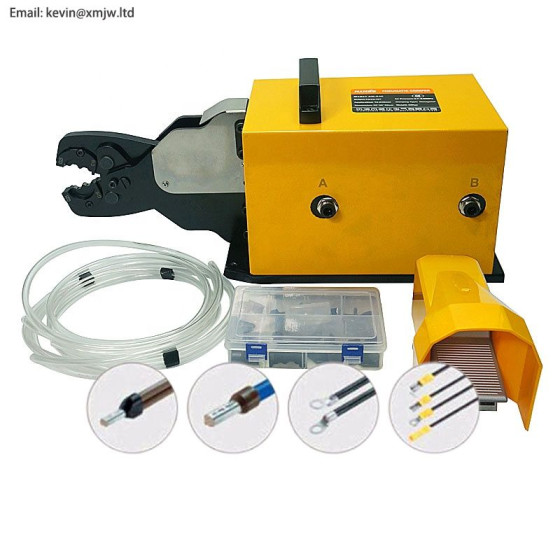

The machine is driven by dual-action normal cylinder, which has advantages of high efficiency and quality in crimping force and speed. The machine is fit for crimping many kinds of terminals. The die sets are inter-changeable with our manual crimping tools. So we can provide you all kinds of die sets for crimping.Accessories:Die set. x 1PCFoot-pedal X 1PCAir pipes X 2PCS
Specification
Model | Terminal Shape and Size | Output Force | Air pressure | Dimension (mm) | Weight (kg) |
AM-10 | non-insulated terminals: ≤16mm² Insulated Terminal: ≤6mm² tubuler terminal: ≤35mm² | 13.5KN | 0.4~1Mpa | 260*120*140 | 4 |
AM6-4 | tubuler terminal: 0.08-6mm² | 13.5KN | 0.1-1Mpa | 260*120*140 | 5 |
AM6-6 | tubuler terminal: 0.08-6mm² | 13.5KN | 0.4~1Mpa | 260*120*140 | 5 |
AM-240 | non-insulated terminals: ≤ 240mm² U shape terminal: ≤220mm² | 3T | 0.4~1Mpa | 260*120*140 | 27 |
AM-35 | multi-shape | 30KN | 0.6-1Mpa | 310*150*120 | 6.9 |
AM-70 | non-insulated terminals: ≤70mm² U shape terminal: ≤70mm² | 2T | 0.4~1Mpa | 260*120*140 | 20 |
EM-6B2 | 0.25-10mm² | 127KN | 325*265*150 | 12 |
| Air pressure | 0.7-0.95MPA |
| Brand Name | X cable Tech |
| Crimping Type | Hexagon |
| Dimension | 250*160*170mm |
| Function | Crimping terminal & lugs |
| Model Number | AM-70 |
| Name | Penumatic crimping machine |
| Packing | carton |
| Place of Origin | Guangdong;China |
| Speed | 6000 Times/h |
| Usage | crimping |
| Warranty | 1 Year |
| Weight | 20kg |
| Wire Range | die sets 6;10;16;25;35;50;70;95mm2 |
